型号 | 承载能力 （T） | 使用油量 （cm³） | 行程 （mm） | 本高 （mm） | 外径 （mm） | 内径 （mm） | 主轴直径 （mm） | 重量 （kg） |
S10-25 | 10 | 36.1 | 25.0 | 80.0 | 57.0 | 42.93 | 38.10 | 2.4 |
S10-50 | 72.3 | 50.0 | 130.0 | 57.0 | 42.93 | 38.10 | 2.5 | |
S10-75 | 108.4 | 75.0 | 155.0 | 57.0 | 42.93 | 38.10 | 3.1 | |
S10-100 | 144.6 | 100.0 | 180.0 | 57.0 | 42.93 | 38.10 | 3.4 | |
S10-125 | 180.7 | 125.0 | 205.0 | 57.0 | 42.93 | 38.10 | 4.0 | |
S10-150 | 216.9 | 150.0 | 230.0 | 57.0 | 42.93 | 38.10 | 4.2 | |
S20-25 | 20 | 70.7 | 25.0 | 80.0 | 78.0 | 60.00 | 50.00 | 3.7 |
S20-50 | 141.3 | 50.0 | 135.0 | 78.0 | 60.00 | 50.00 | 4.9 | |
S20-75 | 212.0 | 75.0 | 160.0 | 78.0 | 60.00 | 50.00 | 5.6 | |
S20-100 | 282.6 | 100.0 | 185.0 | 78.0 | 60.00 | 50.00 | 6.3 | |
S20-125 | 353.3 | 125.0 | 210.0 | 78.0 | 60.00 | 50.00 | 7.0 | |
S20-150 | 423.9 | 150.0 | 235.0 | 78.0 | 60.00 | 50.00 | 7.7 | |
S30-25 | 30 | 105.0 | 25.0 | 85.0 | 100.0 | 73.15 | 57.15 | 5.0 |
S30-50 | 210.0 | 50.0 | 145.0 | 100.0 | 73.15 | 57.15 | 7.6 | |
S30-75 | 315.0 | 75.0 | 170.0 | 100.0 | 73.15 | 57.15 | 7.8 | |
S30-100 | 420.0 | 100.0 | 195.0 | 100.0 | 73.15 | 57.15 | 8.9 | |
S30-125 | 525.0 | 125.0 | 220.0 | 100.0 | 73.15 | 57.15 | 10.0 | |
S30-150 | 630.0 | 150.0 | 245.0 | 100.0 | 73.15 | 57.15 | 11.0 | |
S50-25 | 50 | 178.0 | 25.0 | 95.0 | 127.0 | 95.25 | 79.50 | 8.8 |
S50-50 | 356.0 | 50.0 | 120.0 | 127.0 | 95.25 | 79.50 | 10.5 | |
S50-75 | 534.0 | 75.0 | 190.0 | 127.0 | 95.25 | 79.50 | 16.8 | |
S50-100 | 712.0 | 100.0 | 215.0 | 127.0 | 95.25 | 79.50 | 18.2 | |
S50-125 | 890.0 | 125.0 | 240.0 | 127.0 | 95.25 | 79.50 | 19.9 | |
S50-150 | 1068.1 | 150.0 | 265.0 | 127.0 | 95.25 | 79.50 | 21.4 | |
S100-25 | 100 | 333.1 | 25.0 | 100.0 | 177.0 | 130.30 | 104.90 | 16.9 |
S100-50 | 666.3 | 50.0 | 160.0 | 177.0 | 130.30 | 104.90 | 26.8 | |
S100-100 | 1332.7 | 100.0 | 210.0 | 177.0 | 130.30 | 104.90 | 36.8 | |
S100-125 | 1665.8 | 125.0 | 235.0 | 177.0 | 130.30 | 104.90 | 40.6 | |
S100-150 | 1999.0 | 150.0 | 260.0 | 177.0 | 130.30 | 104.90 | 44.3 | |
S150-50 | 150 | 1004.8 | 50.0 | 200.0 | 215.0 | 160.00 | 115.00 | 50.2 |
S150-100 | 2009.6 | 100.0 | 250.0 | 215.0 | 160.00 | 115.00 | 60.0 | |
S150-150 | 3014.4 | 150.0 | 300.0 | 215.0 | 160.00 | 115.00 | 68.9 | |
S200-50 | 200 | 1416.9 | 50.0 | 200.0 | 255.0 | 190.00 | 135.00 | 71.6 |
S200-100 | 2833.0 | 100.0 | 250.0 | 255.0 | 190.00 | 135.00 | 85.0 | |
S200-150 | 4250.7 | 150.0 | 300.0 | 255.0 | 190.00 | 135.00 | 98. |
- 150 2104 5603
液压千斤顶
专业化 系统化 高端化

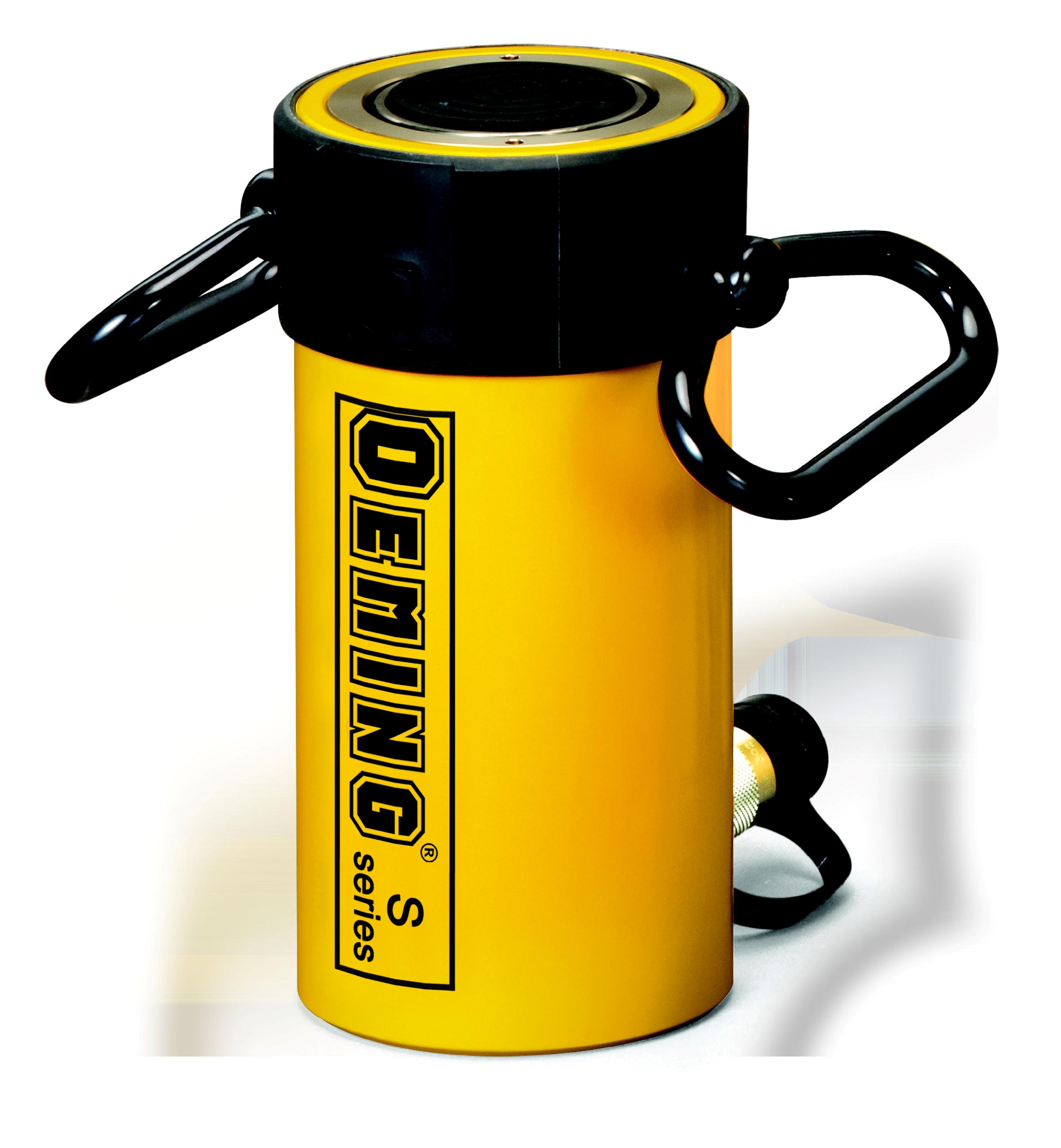

标准型千斤顶
◎可360o°全方位使用设计。
◎主轴及液压缸内壁硬铬处理耐磨、抗腐蚀；并能增加密封性及使用寿命。
◎强力弹簧加速主轴回缩速度。
◎防尘环减少污染物附着。
◎上螺帽保护主轴过度伸长。
◎表面烤漆美观抗腐蚀、防锈。
◎各型号均含 3/8NPT 快速接头及防尘盖。
